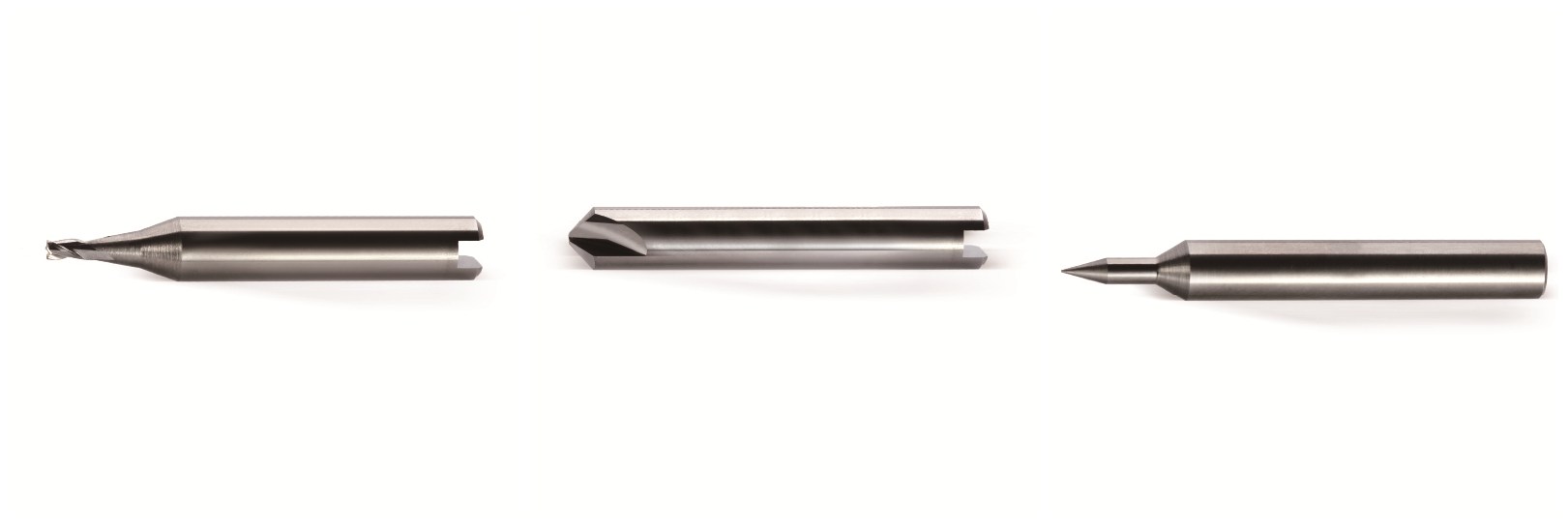

    solid carbide end mill cutter and tracer point compatible with viper

    solid carbide end mill cutter and tracer point compatible with viper
    item Order code RAISE ref Name Material d
    (mm)    		 Size Replaceable cutters Ref Price Qty. Add to cart
    TOP 80 SWISS GRADE P-1733 W114 end mill cutter Carbide 2.0 φ2.0xD6x40 W114M 60
    TOP 80 SWISS GRADE P-1463 W101 end mill cutter Carbide 2.5 φ2.5xD6x40 60
    60 UNIVERSAL GRADE P-3719 W129 end mill cutter Carbide 3.0 φ3.0xD6x40 60
    TOP 80 SWISS GRADE P-3909 DW8080 dimple cutter Carbide 80° D6x80°x40x2T W138 60
    TOP 80 SWISS GRADE P-3916 DW8095 dimple cutter Carbide 95° D6x95°x40x2T W234 60
    TOP 80 SWISS GRADE P-3910 DW8090 dimple cutter Carbide 90° D6x90°x40x2T W103/W238/W105/F1W 60
    TOP 80 SWISS GRADE P-4006 DW8100 dimple cutter Carbide 100° D6x100°x40x2T 0061#/W289/W113/W110/ F42/JMA F13W 60
    TOP 80 SWISS GRADE P-4005 DW8106 dimple cutter Carbide 106° D6x106°x40x2T W63/F6/0062#/W102 60
    TOP 80 SWISS GRADE P-3903 U101 Tracer point Carbide 1.2 φ1.2x3.0xD6x48 23.8
    TOP 80 SWISS GRADE P-3905 U102 Tracer point Carbide 2.6 φ2.6x9.0xD6x48x30° 23.8
    TOP 80 SWISS GRADE P-3906 U102TT Tracer point Carbide 2.0 φ2x6.0xD4x26x30° 23.8
    TOP 80 SWISS GRADE P- 3904 U103 dimple cutter Carbide 1.0 φ1.0x3.0xD6x48 23.8
    60 UNIVERSAL GRADE P-3907 U103TT Tracer point Carbide 1.0 φ1.0x3.0xD4x21 23.8
