solid carbide end mill and tracer for futuraP-3351
60 UNIVERSAL GRADE

ORDER CODEP-3351
Solid carbideCarbide
Our price$24

PRODUCTS DETAILS
PRODUCT REVIEWS

specification
quick details
description
packing

specification

Order code	Raise ref	material	d.mm	Replaceable cutters Ref	price	Quantity	Add to cart
P-3351	02LM	Carbide	2.0		$24

Quick details

QUICK DETAILS

Order code:P-3351
RAISE Ref. :02LM
Material:Carbide
Compatible with machine:Compatible with SILCA Futura Pro,Futura Pro Engraving,Futura Pro Automotive

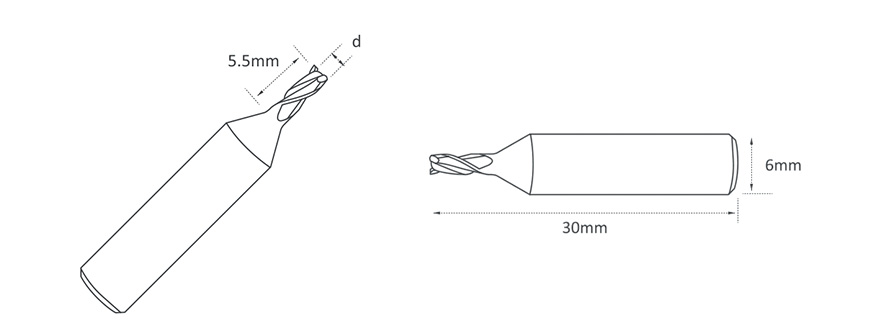

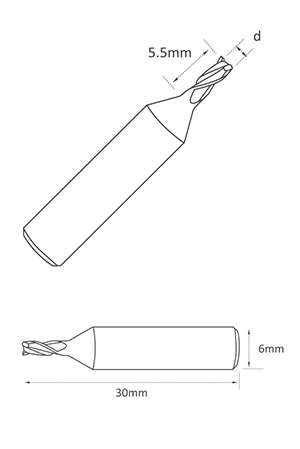

D[mm]:6
d[mm]:2.0
L[mm]:30
Replaceable cutters
*Click the machine name to get all the cutters for this machine
*SILCA IS A TRADEMARK OF A THIRD PARTY NOT AFFILIATED NOR LINKED WITH RAISE KEY CUTTER(ZHANGJIAGANG RUIZHNEG TOOL.,LTD)

1
Compatible with machineCompatible with SILCA Futura Pro, Futura Pro Engraving,Futura Pro Automotive
2
Same size 80 series milling cutter 02LW
3
FEATURES 1.Material: Imported high hardness and high wear resistance carbide material, ultrafine grain and good wear resistance.2.Manufacturing process: Full automatic grinding center with high gloss grinding, sharp and low noise, suitable processing key with.3.Quality: The roundness of the handle is 0.002mm, which greatly reduces the blade deflection during high-speed rotation.4.Character : Accurate size, high precision of cutting key; sharp, aimed at the high speed of the electronic key machine, we design back angle of easy chip removal, cut fast and light.5.Advantages: Sharp, cut brass key and nickel silver copper key smooth without burrs.

SUIT FOR PROCESSING KEYS

All internal milling slots and external milling slot keys, suitable for processing nickel silver copper keys, can efficiently process original high hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc

P-3896

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
