RAISE CUTTERS, RAISE PERFORMANCE.

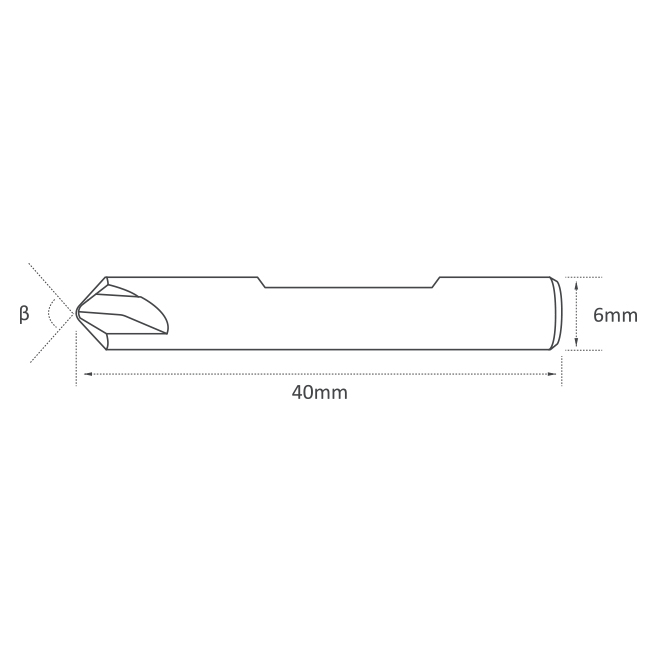

solid carbide end millcutter and tracer point for viperP-3426
60 UNIVERSAL GRADE
ORDER CODEP-3426
Solid carbideCarbide
Our price$12.8
| Order code | Raise ref |
material |
Dimple Angle β |
P Tip Width |
Replaceable cutters Ref |
price |
Quantity | Add to cart |
| P-3426 | DW5095-0.8 | carbide | 95° | 0.8 |
|
$12.8 |
|
compatible with machinevarious vertical key machines and compatible with SILCA, JMA, JINGJI electronic key cutting machine,.
Corresponding 60 universal GRADE tracer pointSOLID CARBIDE TRACER POINT FOR DIMPLING
Corresponding SOLID CARBIDE SINGLE-EDGED DIMPLE SOLID CARBIDE SINGLE-EDGED DIMPLE CUTTER
FEATURES Material: Made of high-grade wear resistant solid carbide, the material has good wear resistance and impact resistanceManufacturing process: The tool tip is designed with a drilling and milling head, ground by a full-automatic grinding center, sharp cutting edge, which can process keys of various materials.
Features: High drill force design, fast chip removal, light drilling and no vibration, processed key smoothly with burrs
security door key, KABA, Meilibao, Baodean.
| 55 COMMON GRADE | 60 UNIVERSAL GRADE | TOP 80 SWIss GRADE | |
|---|---|---|---|
| Material | Material with good breaking resistance | Material compatible with wear and break resistance | The High Hardness and the longest-wearing type material |
| For key | Civil key and copy car key | Mainly for copy key | Original high hardness key |
| For machine | Mainly for Manaul type key duplicator machine | Mainly for CNC key duplicator machine | CNC key duplicator machine |
| processing | High accuracy grinding | High gloss grinding on flute | Mirror grinding on the flute |
| Tolerance | 0.01mm | 0.01mm | 0.005mm |
| Using life | More than 30 pieces multitrack key | Cutting 100 pieces keys | Cutting 100 pieces original Nickel Silver keys |
