solid carbide end mill cutter and tracer point for electronic key cutting machineP-4431
60 UNIVERSAL GRADE

ORDER CODEP-4431
Solid carbideCarbide
Our price$12.8

PRODUCTS DETAILS
PRODUCT REVIEWS

specification
quick details
description
packing

specification

Order code	Raise ref	material	d.mm	Replaceable cutters Ref	price	Quantity	Add to cart
P-4431	TW6105	Carbide	0.5		$12.8

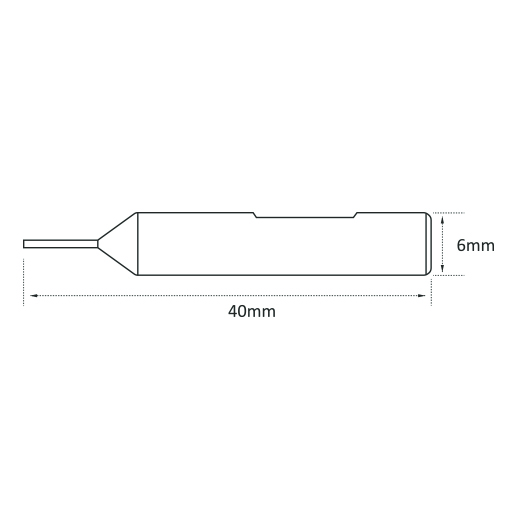

Quick details

QUICK DETAILS

Order code:P-4431
RAISE Ref. :TW6105
Material:Carbide
For machine:Universal electronic key cutting machine CONDOR XC-MINI PLUS II
D[mm]:6
d[mm]:0.5mm
L[mm]:40
Replaceable cutters
*Click the machine name to get all the cutters for this machine

1
For machineUniversal electronic key cutting machine CONDOR XC-MINI PLUS II
2
FEATURES carbide tracer point for electronic key cutting machine has good conductivity, and it will not bent, ensure accurate detection and guarantee the accurary of the fixture and the spindle, not hurting the jaw and the spindle.

SUIT FOR PROCESSING KEYS

All internal milling slots and external milling slot keys, suitable for processing nickel silver copper keys, can efficiently process original high hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc.

P-3896

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
