solid carbide dimple cutter for ninjaP-4036
60 UNIVERSAL GRADE

ORDER CODEP-4036
Solid carbideCarbide
Our price$24

PRODUCTS DETAILS
PRODUCT REVIEWS

specification
quick details
description
packing

specification

Order code	Raise ref	material	Angle	Replaceable cutters Ref	price	Quantity	Add to cart
P-4036	V004M	Carbide	82°	V004	$24

Quick details

QUICK DETAILS

Order code:P-4036
RAISE Ref. :V004M
Material:Carbide
For machine:NINJA VORTEX,NINJA TOTAL,VERSA

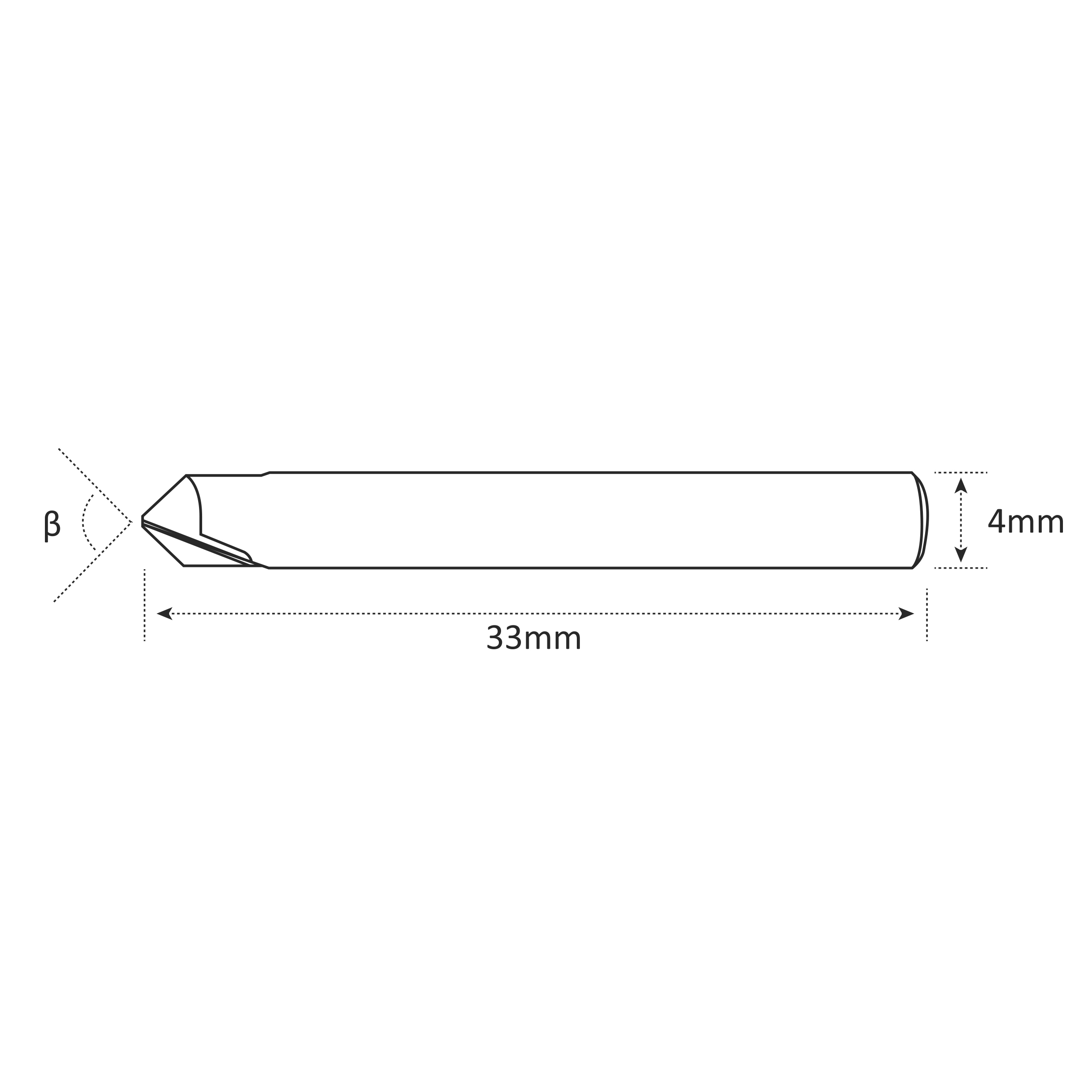

D[mm]:4
Angle:82°
L[mm]:33
Replaceable cuttersV004
*Click the machine name to get all the cutters for this machine

1
For machineNINJA VORTEX,NINJA TOTAL,VERSA
2
Same size 80 series milling cutter V004
3
FEATURES 1.Material: imported high hardness and high wear resistance carbide material, ultra-fine grain and good wear resistance.2.Manufacturing process: full-automatic grinding center with high gloss grinding, sharp and low noise, suitable to process key with high speed, speed rotate 12000RPM, drill design, drill force, easy chip removal.3.Advantages: sharp, cut brass key and nickel white copper key smooth without burrs and shock.

SUIT FOR PROCESSING KEYS

All internal milling slots and external milling slot keys, suitable for processing nickel silver copper keys, can efficiently process original high hardness key blanks, such as Honda original keys, STRATTEC key blanks, etc.

P-3896

Product Video

55, 60, 80 end mill series difference table

	55 COMMON GRADE	60 UNIVERSAL GRADE	TOP 80 SWIss GRADE
Material	Material with good breaking resistance	Material compatible with wear and break resistance	The High Hardness and the longest-wearing type material
For key	Civil key and copy car key	Mainly for copy key	Original high hardness key
For machine	Mainly for Manaul type key duplicator machine	Mainly for CNC key duplicator machine	CNC key duplicator machine
processing	High accuracy grinding	High gloss grinding on flute	Mirror grinding on the flute
Tolerance	0.01mm	0.01mm	0.005mm
Using life	More than 30 pieces multitrack key	Cutting 100 pieces keys	Cutting 100 pieces original Nickel Silver keys
