RAISE CUTTERS, RAISE PERFORMANCE.
solid carbide single-edged dimple cutter special for double rowof pinsP-1224
55 COMMON GRADE
ORDER CODEP-1224
Solid carbideCarbide
Our price$8.5
| Order code | Raise ref |
material |
Dimple Angle β |
P Tip Width |
Replaceable cutters Ref |
price |
Quantity | Add to cart |
| P-1224 | DW1090-J4.5 | carbide | 90° | 0.8 |
|
$8.5 |
|
Corresponding 55 COMMON GRADE tracer pointHSS-HIGH SPEED STEEL TRACER POINT FOR DIMPLING
Corresponding SINGLE-edge dimpling cutterSOLID CARBIDE SINGLE-EDGED DIMPLE CUTTER
Corresponding DOUBLE-EDGE DIMPLING CUTTERSOLID CARBIDE DOUBLE-EDGED DIMPLE CUTTER
FEATURES Material: It is made of solid carbide, the material is impact-resistant material, with good wear resistance and good impact resistance.Manufacturing process: large drilling force cutter tip design, fast chip breaking, p Be produced by 5-axis grinding center. Cutter edge is very sharp.Features: Sharp cutter edge, unique back angle design, no vibration when deep hole.Advantages: Suitable for drilling various copper keys and iron keys，Single Row of Pins.

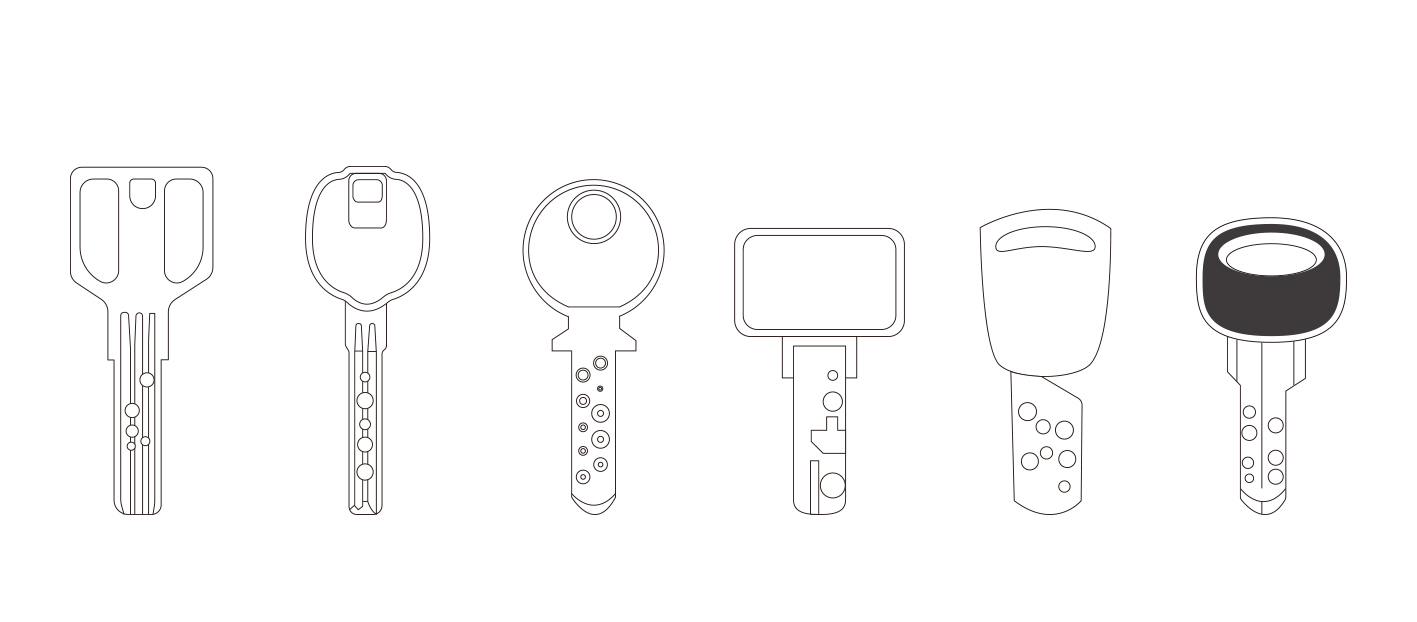

security door key, goldatom, KABA, Meilibao, Baodean, a row of slot pin.
| 55 COMMON GRADE | 60 UNIVERSAL GRADE | TOP 80 SWIss GRADE | |
|---|---|---|---|
| Material | Material with good breaking resistance | Material compatible with wear and break resistance | The High Hardness and the longest-wearing type material |
| For key | Civil key and copy car key | Mainly for copy key | Original high hardness key |
| For machine | Mainly for Manaul type key duplicator machine | Mainly for CNC key duplicator machine | CNC key duplicator machine |
| processing | High accuracy grinding | High gloss grinding on flute | Mirror grinding on the flute |
| Tolerance | 0.01mm | 0.01mm | 0.005mm |
| Using life | More than 30 pieces multitrack key | Cutting 100 pieces keys | Cutting 100 pieces original Nickel Silver keys |
