carbide single-edge end mill cutter raise qinghongP-4097
55 COMMON GRADEORDER CODEP-4097
Solid carbideCarbide
Our price$8.5
Order code | Raise ref |
material |
d.mm | Replaceable cutters Ref |
price |
Quantity | Add to cart |
P-4097 | AW5509 | Carbide | 0.9mm | EW5509B/0039# | $8.5 |
![]() |
compatible with machinevarious vertical manual key machines, such as 363, 333L, 339, 369, 368A&B, 398AC, 399AC, 369,368B,383AC,388AC,398AC,399AC, Q36,Q38,Q39,Q30,Q32,Q31
Same function 55 COMMON GRADE end milling cutter SOLID CARBIDE HELICAL END MILL CUTTER RAISE LANGYA
Same function 60 UNIVERSAL GRADE high gloss grinding 3 flutes end mill cutter SOLID CARBIDE HIGH GLOSS GRINDING 3 FLUTES END MILL CUTTER
FEATURES

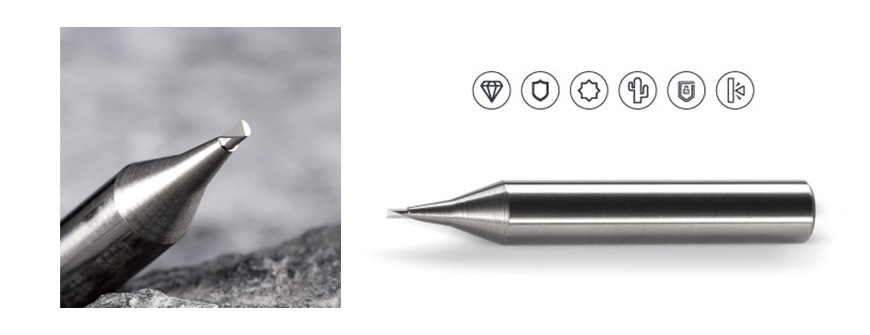

Material: It is made of solid carbide, the material is impact-resistant material, with good wear resistance and good impact resistance.Manufacturing process: It has patented design and three dimensions to enhance the rigidity of the tip, the rigidity is 50% stronger than the spiral groove end mill design, and not easily broken.Features: Cutter edge is very sharp, can cut copper key, and nickel silver key.Advantages: It is suitable for the processing of C-class lock cylinder multi-track key, which makes processed key slot smooth and no burr.
All internal milling Laser keys, automotivekeys, High Security keys , especially suitable for machining C-class lock cylinder multi-track keys.

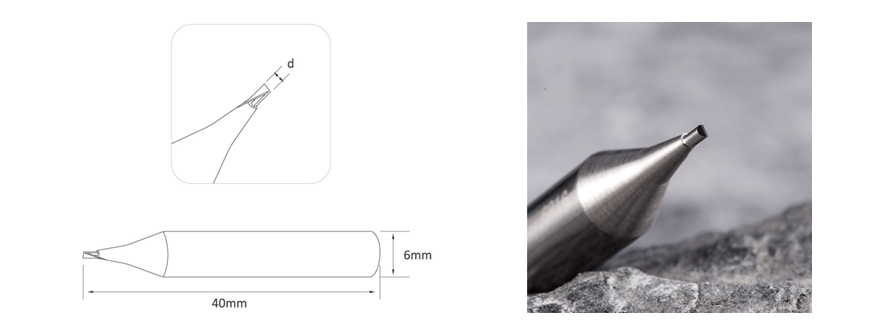

Please choose the Corresponding tracer point size, The distance from the tip of cutter to the mounting hole should less than 20mm.
For GLADAID and MODERN key machines, please use a specific size end mill cutter. For details, please contact RAISE engineers.
55 COMMON GRADE | 60 UNIVERSAL GRADE | TOP 80 SWIss GRADE | |
---|---|---|---|
Material | Material with good breaking resistance | Material compatible with wear and break resistance | The High Hardness and the longest-wearing type material |
For key | Civil key and copy car key | Mainly for copy key | Original high hardness key |
For machine | Mainly for Manaul type key duplicator machine | Mainly for CNC key duplicator machine | CNC key duplicator machine |
processing | High accuracy grinding | High gloss grinding on flute | Mirror grinding on the flute |
Tolerance | 0.01mm | 0.01mm | 0.005mm |
Using life | More than 30 pieces multitrack key | Cutting 100 pieces keys | Cutting 100 pieces original Nickel Silver keys |
