RAISE CUTTERS, RAISE PERFORMANCE.

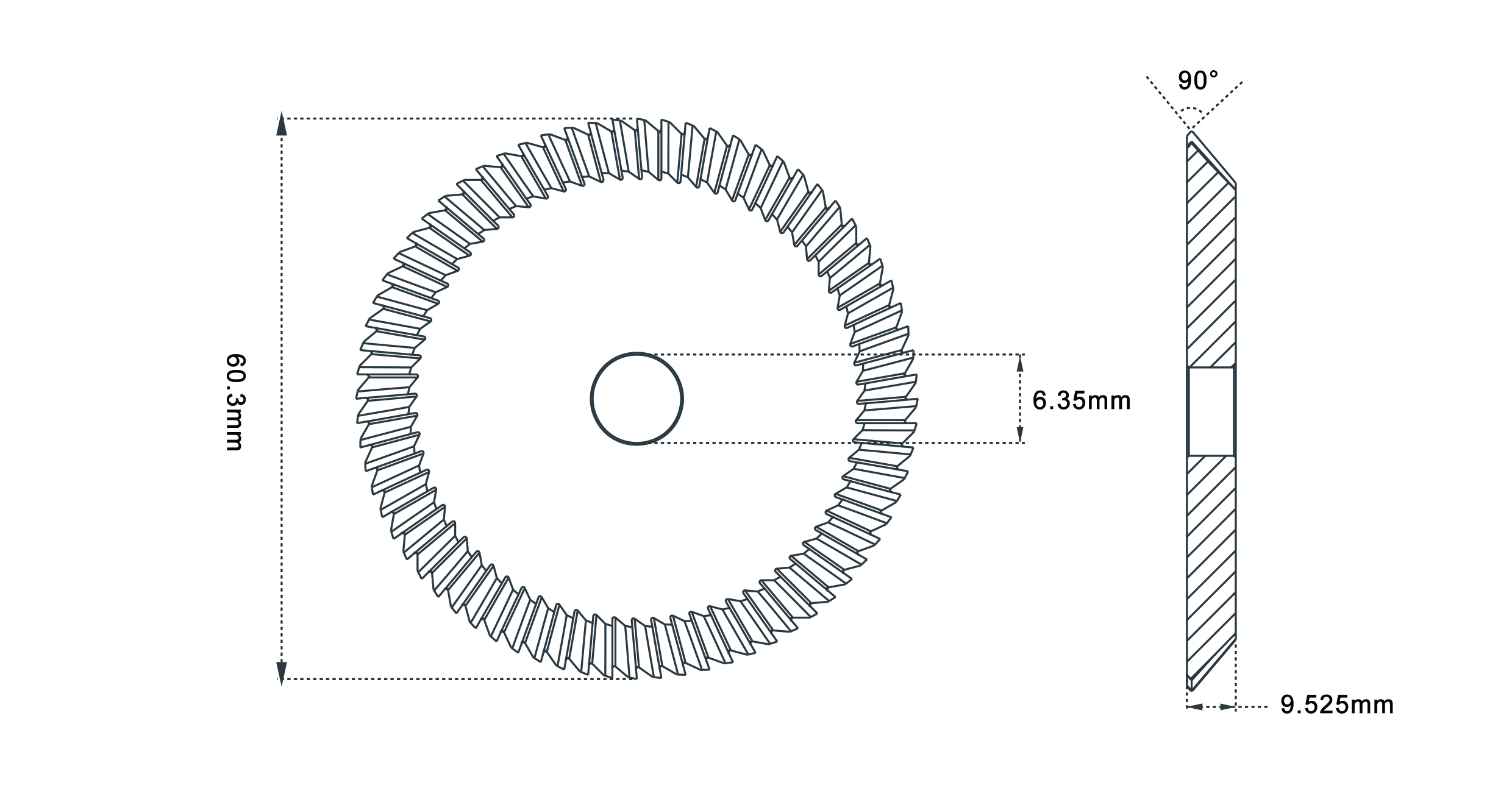

φ60.3x7.14xφ9.53x80Tx60°-A0.254P-1052

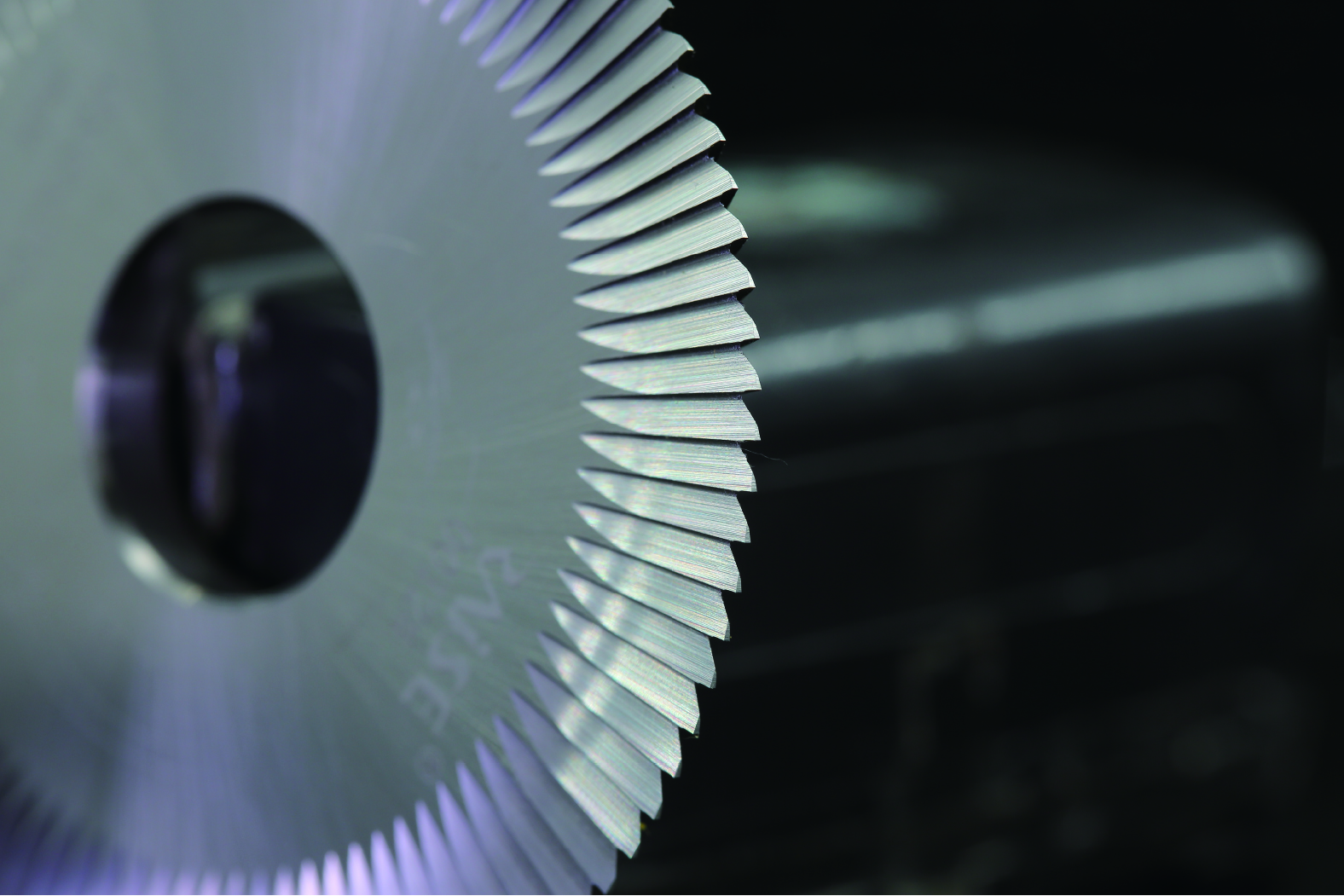

SINGLE ANGLE MILLING CUTTER
ORDER CODEP-1052
Solid carbideCarbide
Our price$126
| Order code | Raise ref |
material |
size | Replaceable cutters Ref |
price |
Quantity | Add to cart |
| P-1052 | CW-6010 | HSSM35 | φ60.3x7.14xφ9.53x80Tx60°-A0.254 | CW-6010 | $126 |
|
For machineSwitch BlitzTM
FEATURES 1.Material: It is made of HSS-Co(HSSM35) material imported from Japan, high temperature quenching, hardness reaches HRC64-65, ultra-high temperature quenching, high hardness, copper key and iron key can all be cut, good wear resistance, Durable.2.Production process: Using full CNC grinding machine, full grinding technology, with sharper tip so as to cut the key easoer. The cut key is smooth and burr-free.
3.Suit for machine: It is suitable for 90° angle,small cylinder cutter.For use with most automotive locks and small cylinder locks.Tiger shankTM No. 123TSHARK Codemax® No. 1200MAX Original BlitzTM No. 1200CMB Extreme BlitzTM No. 1200CMBX.4.Packaging: single-piece independent packaging can prevent collision during transportation.
Read Before Using 1.Before running the machine, it is necessary to accurately adjust the cutter to ensure the key blank is matching with the mother key, and to avoid the tool being broken due to the unstable key assembly.2.The cutter is clamped on the machine and the key blank and the mother key are fixed on the clamps. Do not clamp the key blank too tight. The patent key is close to the tracer and the key blank is close to the cutter. If the key blank is not fastened, the key blank should be removed and re-clamped.3.When the machine is not running, clamp the cutter and cut from the left-to-right to check if the position of the parent key and the key blank are uniform. If not, re-clamp again.4.After the machine is running, should wait the cutter is fully rotated before cutting.5.When the key blank is close to the cutter, the clamp should be held to prevent the key blank from hitting the cutter after the cutter is fully rotated before cutting. So the first cutter tip which just touched the key blank won’t be damaged by uneven force.6.When start to cut the key, it should slowly to push the clamp which fixed the key blank, so that the cutter tip won’t be damaged by uneven force.
| 55 COMMON GRADE | 60 UNIVERSAL GRADE | TOP 80 SWIss GRADE | |
|---|---|---|---|
| Material | Material with good breaking resistance | Material compatible with wear and break resistance | The High Hardness and the longest-wearing type material |
| For key | Civil key and copy car key | Mainly for copy key | Original high hardness key |
| For machine | Mainly for Manaul type key duplicator machine | Mainly for CNC key duplicator machine | CNC key duplicator machine |
| processing | High accuracy grinding | High gloss grinding on flute | Mirror grinding on the flute |
| Tolerance | 0.01mm | 0.01mm | 0.005mm |
| Using life | More than 30 pieces multitrack key | Cutting 100 pieces keys | Cutting 100 pieces original Nickel Silver keys |
