RAISE CUTTERS, RAISE PERFORMANCE.

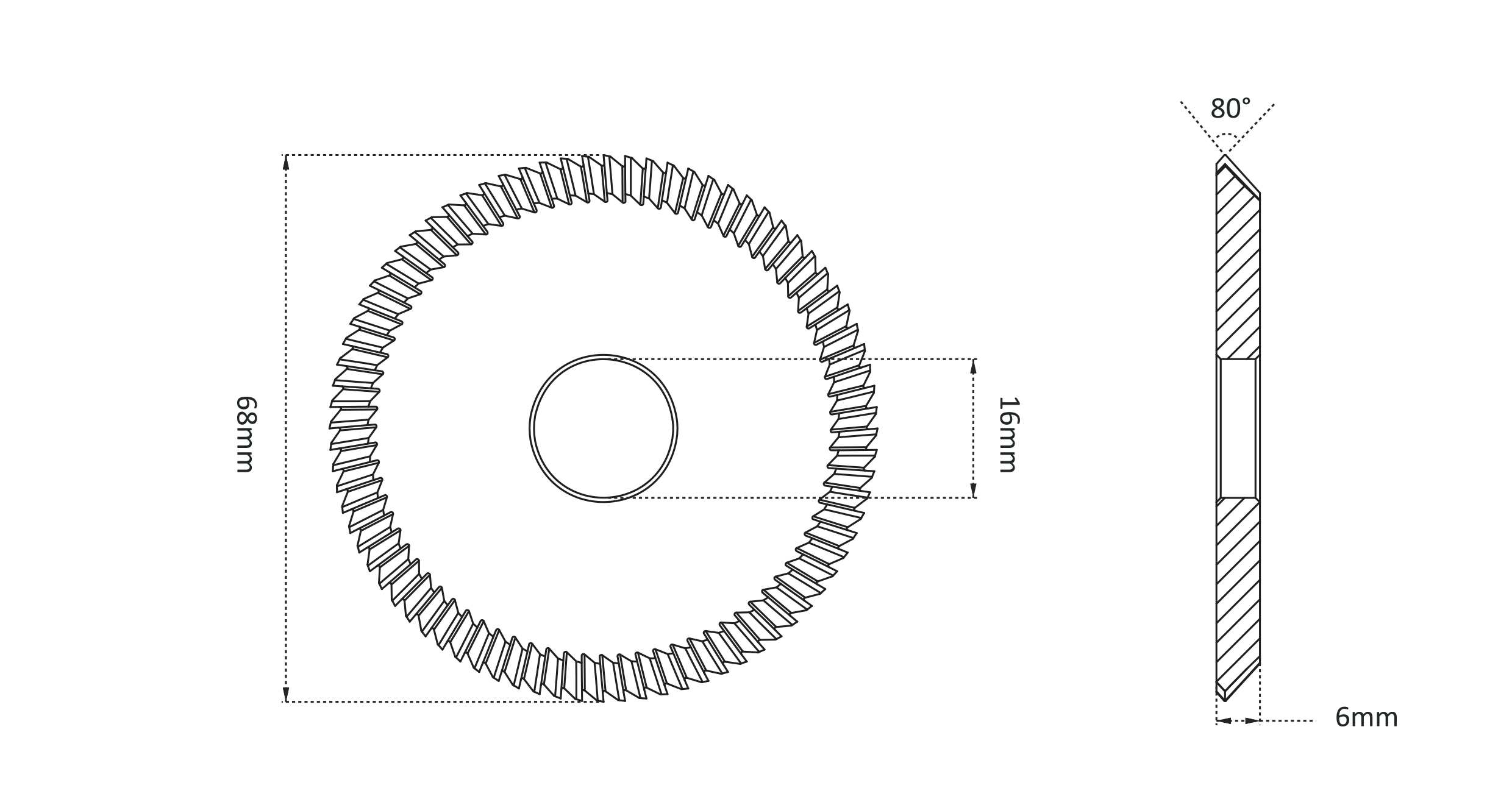

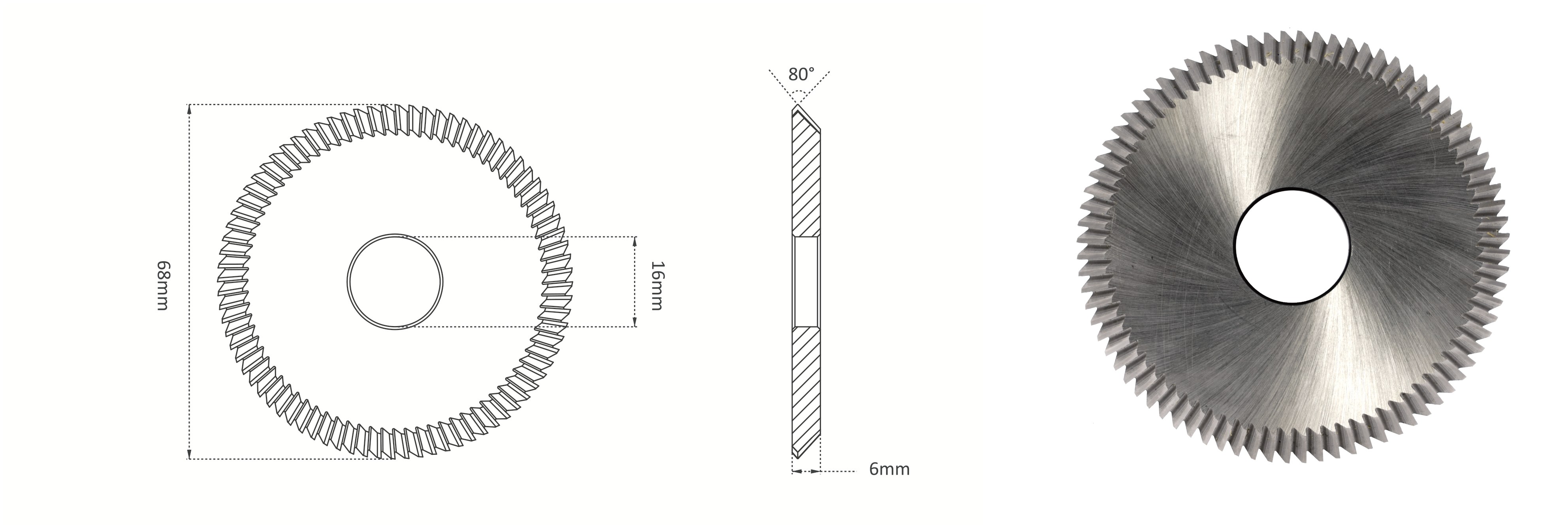

φ68x6xφ16x80°P-3214
DOUBLE ANGLE MILLING CUTTER
ORDER CODEP-3214
Solid carbideCarbide
Our price$162
| Order code | Raise ref |
material |
size | Replaceable cutters Ref |
price |
Quantity | Add to cart |
| P-3214 |
|
Carbide | φ68x6xφ16x80° |
|
$162 |
|
For machine
same size HSS angle milling cutter P-3213

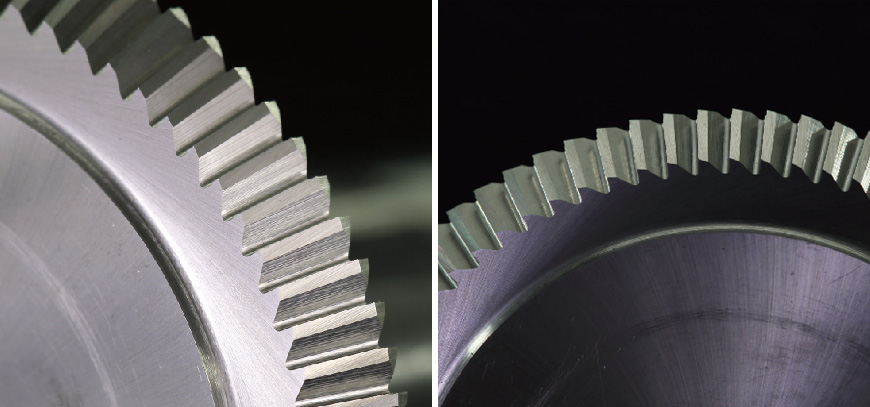

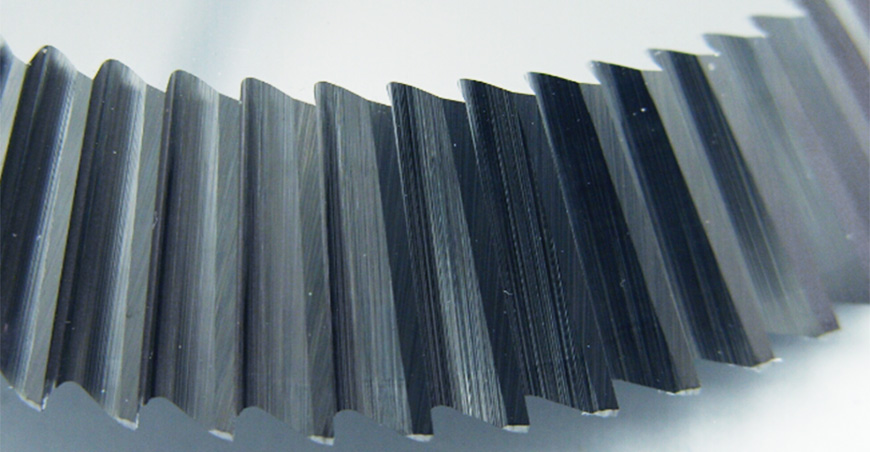

FEATURES 1.Material: Solid carbide, the hardness reaches HRA92.5 or above, quite high hardness. The cutting edge is sharp .It does not need to change the machine and also can process copper keys and iron keys on same key machine. No longer needs to change the cutter.greatly save your precious time. Especially suitable for processing cross iron key, can process 500-800 pieces of iron cruciform keys and about 4 times than the welded carbide cutter.2.Production process: After 11 grinding processes, CNC precision grinding process, the cutting edge is extremely sharp. It can be called dragon cutter. The major breakthrough is the use of reinforced cutter tip, completely overcome the problem of broken on the tip of teeth.
3.In view of the characteristics of carbide brittleness, RAISE invented a unique grinding process, strengthen the cutting edge and improve the rigidity of the tip of cutter. It’s very good to overcome the problem of broken teeth.

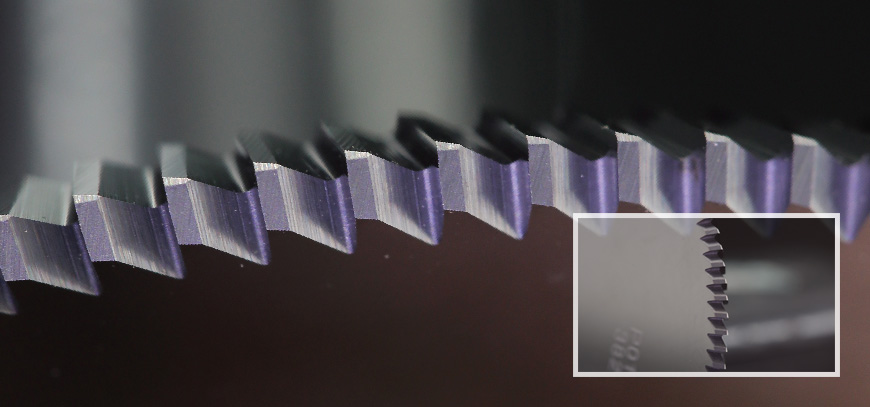

4.Double-sided teeth, both sides can be cut and both sides can duplicate the key. Twice life as normal cutter.5.Dense tooth type, scissor tooth, light cutting, less wear, super durable. Iron key and copper key can be processed.
Read Before Using Carbide material is with high hardness and brittle, in the use of the process should pay attention to feed and feed speed to slow, to prevent broken teeth.The cutter should rotates completely before cutting the key.
| 55 COMMON GRADE | 60 UNIVERSAL GRADE | TOP 80 SWIss GRADE | |
|---|---|---|---|
| Material | Material with good breaking resistance | Material compatible with wear and break resistance | The High Hardness and the longest-wearing type material |
| For key | Civil key and copy car key | Mainly for copy key | Original high hardness key |
| For machine | Mainly for Manaul type key duplicator machine | Mainly for CNC key duplicator machine | CNC key duplicator machine |
| processing | High accuracy grinding | High gloss grinding on flute | Mirror grinding on the flute |
| Tolerance | 0.01mm | 0.01mm | 0.005mm |
| Using life | More than 30 pieces multitrack key | Cutting 100 pieces keys | Cutting 100 pieces original Nickel Silver keys |
